Pinpoint DX Fall '24

This fall my design team and I underwent quite a few rapid prototyping cycles. This meant that we'd be designing, 3D printing, testing, and giving feedback every other day at the latest. These are some of the pictures and design concepts that we had along the way. While this isn't our final prototype, it highlights important early designs we've had.

This is an early version of our injection system. It utilizes a rack and pinion to move the fluid transfer system in sync with the injection system.
This is an early version of our injection system. It utilizes a rack and pinion to move the fluid transfer system in sync with the injection system.

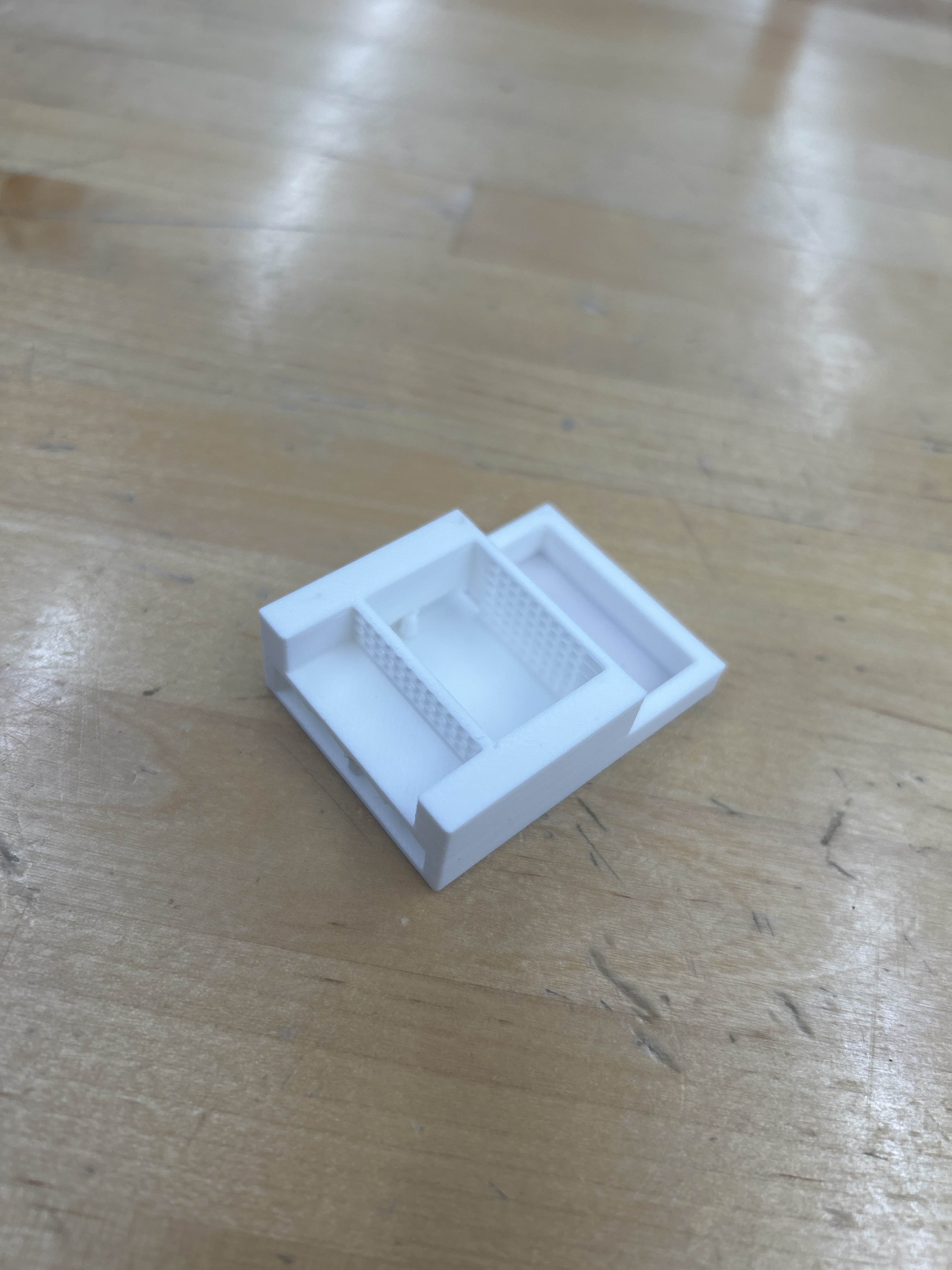

This is a prototype of one of the final stages of our fluid transfer system. It
This is a prototype of one of the final stages of our fluid transfer system. It's now been integrated into the complete assembly after individual testing.
